How a Submersible Pump Works

Submersible pumps, often called sub pumps or electric submersible pumps (ESPs), play a vital role in numerous water and fluid management systems.

Thanks to their specialized design and working principle, these pumps are ideal for a wide range of applications, such as water wells, sewage treatment facilities, oil extraction, and irrigation. To fully understand how submersible pumps operate, it’s important to examine their key components, how they function, and the industries that rely on their performance.

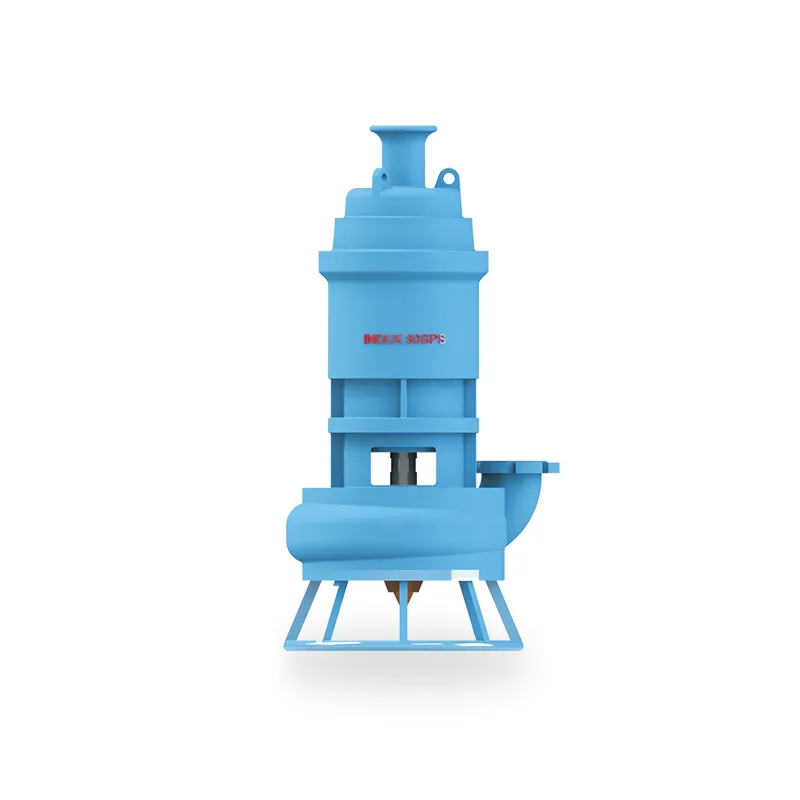

Components of a Submersible Pump

Motor:
The motor is the core of a submersible pump. It is hermetically sealed to prevent water from entering and is specifically engineered to operate fully submerged. This electric motor transforms electrical energy into the mechanical energy needed to drive the pump.

Pump Housing:
Encasing the motor and other internal parts, the pump housing offers protection and structural support. Usually constructed from corrosion-resistant materials, it is built to withstand constant exposure to water and other harsh fluids.

Impeller:
The impeller, attached directly to the motor shaft, acts like a rotor that spins to propel fluid through the pump. It generates the force required to move the liquid efficiently.

Diffuser:
Located around the impeller, the diffuser’s role is to convert the fluid’s kinetic energy into pressure energy, ensuring a steady and smooth flow through the pump.

Intake Screen:
This screen filters out large debris and particles to prevent clogging or damage to the pump’s internal components.

Seals and Bearings:
Seals and bearings play a crucial role in maintaining smooth operation by reducing friction and preventing water from penetrating the motor compartment.

Operational Principles of a Submersible Pump

Immersion in Fluid:
A submersible pump is designed to operate fully submerged in the fluid it pumps. This immersion is essential for efficient performance and enables the pump to be self-priming. The surrounding fluid also cools the motor, eliminating the need for additional cooling systems.

Motor Activation:
When powered on, electricity flows through a cable from the surface to the hermetically sealed motor. The motor then starts running, causing the impeller to rotate.

Fluid Intake:
The spinning impeller creates a low-pressure zone at the pump’s inlet, drawing fluid in through the intake screen, which filters out large debris to protect internal components.

Fluid Movement:
The impeller imparts kinetic energy to the fluid, pushing it into the diffuser. The diffuser converts this kinetic energy into pressure energy, ensuring smooth and efficient fluid flow through the pump.

Fluid Discharge:
The pressurized fluid is expelled through the discharge outlet and can be directed to a storage tank, distribution system, or other target location, depending on the application.

Continuous Operation:
As long as power is supplied, the submersible pump runs continuously or intermittently, making it adaptable to a wide range of tasks.

Applications for Submersible Pumps

Boreholes / Water Wells:
Submersible pumps are widely used in deep wells to extract groundwater. Their capacity to operate at great depths and deliver a consistent water flow makes them well-suited for residential, agricultural, and industrial water supply.

Sewage Treatment:
In sewage treatment plants, submersible pumps are essential for transferring wastewater and sludge. Their sealed construction prevents contamination and ensures dependable performance in demanding environments.

Oil Production:
The oil and gas sector relies on submersible pumps for extracting oil from deep wells. Their ability to withstand high pressures and harsh operating conditions is vital for efficient production.

Irrigation Systems:
Submersible pumps enhance agricultural irrigation by efficiently delivering water directly to fields, optimizing water use and promoting healthy crop growth.

Flood Control / Dewatering:
During flooding events, submersible pumps are deployed to remove water from basements, tunnels, and other flooded areas. Their portability and powerful operation make them critical tools for emergency water management.

Conclusion

Due to their efficient and reliable operation, submersible pumps have become an indispensable key equipment in many fluid management systems. Understanding their components and working principles will help to more fully understand the important role of submersible pumps in a variety of applications such as water supply, sewage treatment, oil extraction and agricultural irrigation. Their unique design enables them to operate underwater, have self-priming capabilities, high efficiency and versatility. Although submersible pumps have a high initial investment and are more complicated to maintain, they bring many advantages that make them a valuable device in modern fluid management.

Advantages and Disadvantages of Submersible Pumps

Submersible pumps, also referred to as sub pumps or electric submersible pumps (ESPs), feature a hermetically sealed motor—meaning it is completely airtight—directly connected to the pump body. The entire unit is submerged in the fluid it is designed to move. These pumps are widely used in various fields, including irrigation, water supply, dewatering, slurry handling, and sewage treatment. Like any technology, submersible pumps come with both benefits and drawbacks. This article explores the key advantages and disadvantages of submersible pumps to help you determine their appropriateness for different uses.

Advantages of Submersible Pumps

Efficiency and Performance:

• High Efficiency: Submersible pumps operate directly within the fluid they pump, eliminating the need to overcome suction lift. This results in lower energy consumption and improved efficiency.

• Cavitation Prevention: Because they are fully submerged, these pumps avoid cavitation—an issue caused by vapor bubble formation that can damage other types of pumps.

Self-Priming:

• Automatic Operation: Submersible pumps are inherently self-priming, requiring no manual effort to purge air from the pump or suction line, which enhances convenience and reliability.

• Smooth Start-Up: Their design allows for seamless and automatic start-up, which is especially advantageous in applications requiring intermittent operation.

Design and Maintenance:

• Compact Size: Their compact construction makes them ideal for installations where space is limited.

• Low Noise: Operating underwater naturally dampens noise, making submersible pumps much quieter compared to surface-mounted alternatives.

• Reduced Maintenance: The enclosed design protects internal components from external damage and environmental exposure, lowering maintenance frequency and costs.

Versatility and Applications:

• Wide Range of Uses: Submersible pumps are suitable for numerous industries, including residential, industrial, agricultural, and mining sectors. They can handle clean water, wastewater, slurry, and other fluids in applications such as boreholes, water wells, sewage treatment, slurry handling, dewatering, oil extraction, and irrigation.

• Deep Operation: Many submersible pumps are capable of operating at substantial depths, making them well-suited for deep well and borehole pumping tasks.

Disadvantages of Submersible Pumps

Initial Cost:

• Higher Upfront Expense: Submersible pumps generally come with a higher initial price tag compared to other pump types, which can impact budgets, especially for cost-sensitive projects.

• Complex Installation: Installing these pumps often requires specialized tools and skilled technicians, increasing the overall installation cost and complexity.

Maintenance Challenges:

• Difficult Access: Maintenance and repair can be challenging because the pump is submerged in the fluid. Retrieving the pump for repairs requires specialized equipment and can be time-consuming.

• Sealing Issues: Ensuring a perfect seal for the motor to prevent water ingress is crucial. Any failure in sealing can lead to motor damage and costly repairs.

Operational Limitations:

• Dependence on Stable Power: Submersible pumps require a consistent and reliable power supply; power interruptions or fluctuations can negatively affect their operation.

• Sensitivity to Debris: While capable of handling various fluids, submersible pumps can be vulnerable to large solids or debris that may clog or harm the pump components.

Corrosion and Material Wear:

• Exposure to Harsh Fluids: Pumps used in abrasive or corrosive environments may experience material degradation over time, reducing their service life and efficiency.

• Material Compatibility: Selecting appropriate materials for the pump is essential to withstand the operating conditions, which can limit options and potentially increase costs.

Conclusion

Submersible pumps provide numerous benefits such as excellent efficiency, self-priming operation, quiet performance, and adaptability across a wide range of applications. Their compact design and relatively low maintenance demands make them a popular choice for many scenarios. However, they also involve higher upfront costs, potential difficulties with maintenance, and certain operational constraints that should be carefully assessed.

Selecting the right submersible pump requires a thorough evaluation of your specific application needs, environmental conditions, and overall cost of ownership. By balancing these pros and cons, you can make a well-informed decision that guarantees reliable and efficient pumping performance.
